Back to News
less than 1 min read
Jun 03, 2024
We are now supplying PMI & PVC
We are now supplying two new types of core material PMI & PVC.
They both have a range of densities for different purposes.

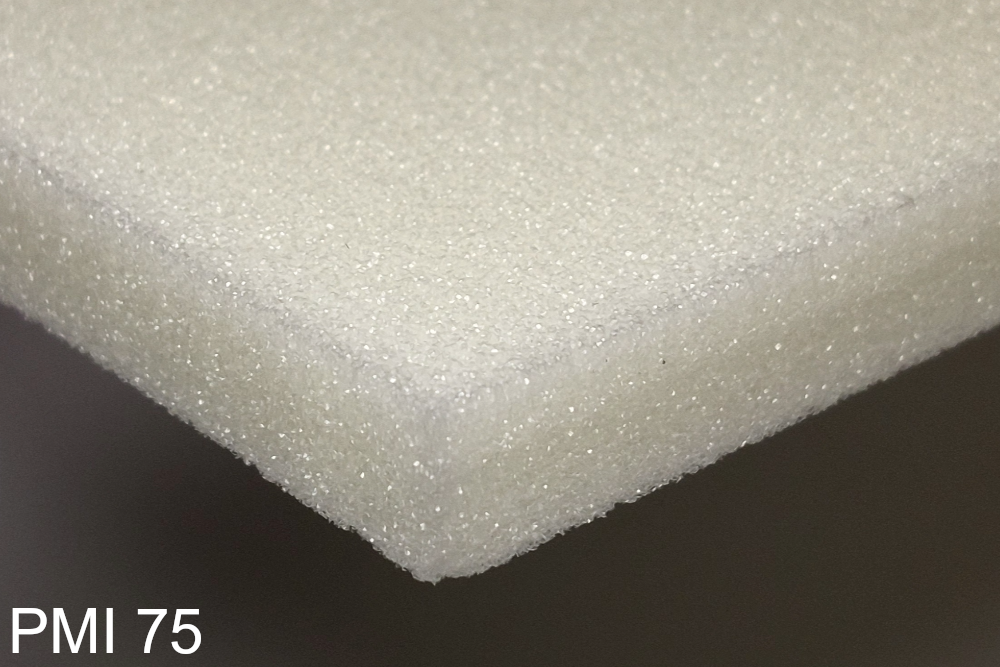

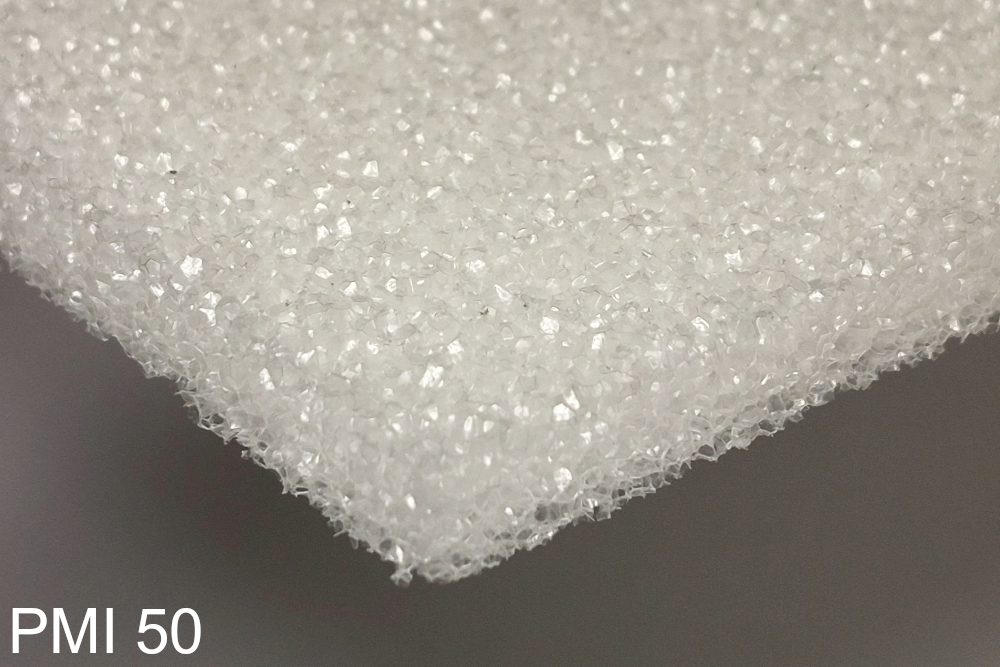

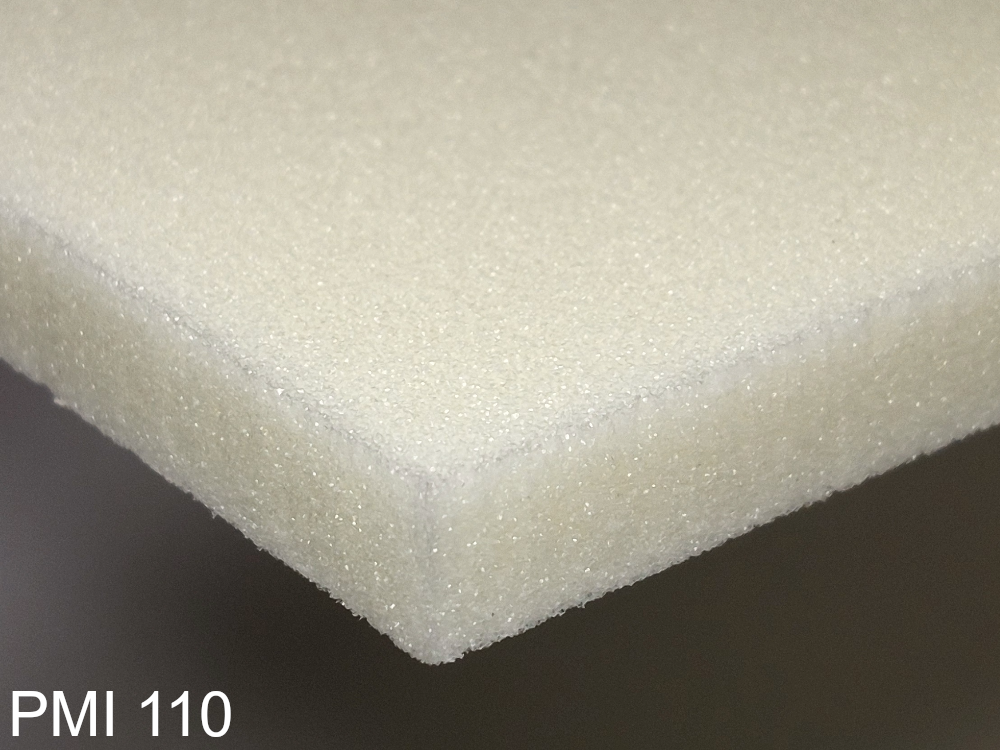

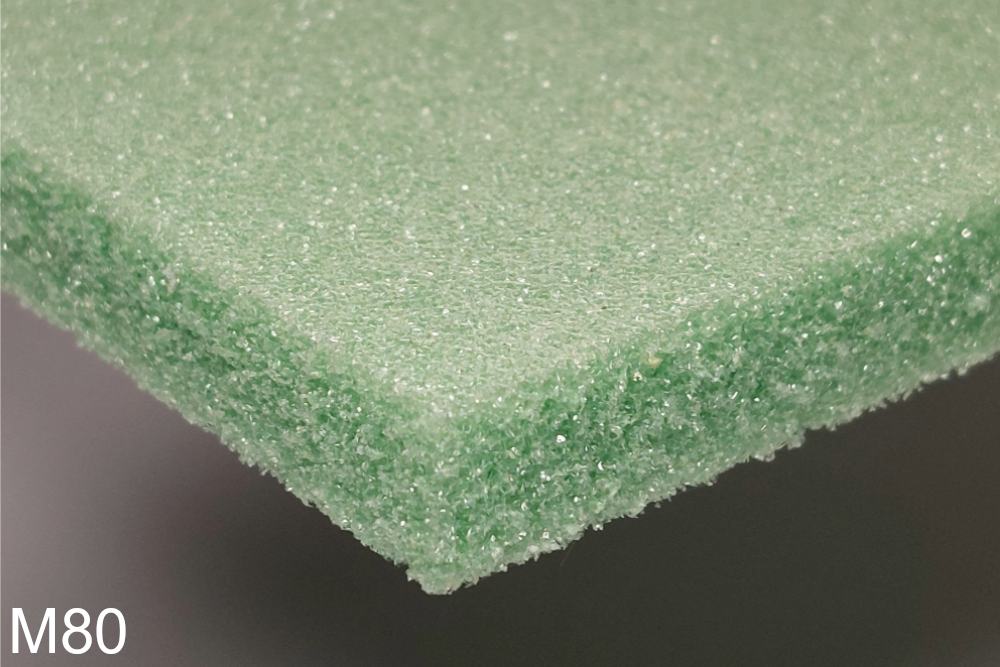

The PMI core material we supply come in 50kg/m3, 75kg/m3 or 110kg/m3 densities. The PVC core material we supply come in 60kg/m3 or 80kg/m3 densities. (see table below for more details)
Share this article
PMI Technical Specifications
Properties | Test Method | PMI 50 | PMI 75 | PMI 110 |
Density | ISO 845 | 50kg/m3 | 75kg/m3 | 110kg/m3 |
Compressive Strength | ISO 844 | 850kPa | 1700kPa | 3600kPa |
Tensile Strength | ASTM D638 | 1680kPa | 2300kPa | 3700kPa |
Shear Strength | ASTM C273 | 850kPa | 1250kPa | 2380kPa |
Download -
PVC Technical Specifications
Properties | Test Method | PVC 60 | PVC 80 |
Density | ASTM D1622 | 60kg/m3 | 80kg/m3 |
Compressive Strength | ASTM D1621-10 | 750kPa | 1220kPa |
Tensile Strength | ASTM D1623 | 1330kPa | 1820kPa |
Shear Strength | ASTM C273 | 700kPa | 1060kPa |
Download -
